25,00 €
VAT included
Availability: 3 in stock
Lista dei desideri
Shipping costs: 6,00€
30 Days to return the product
100% Secure Payments
Share on
170 degree diagonal macro viewing angle lens with mirror image
Dust and water resistant, IP68
High-resolution colour COMS/CCD image sensor
Distance guideline projection
Night vision
Very easy mounting
Product Specifications
Lens angle: 170 degrees diagonal
Sensing area: NTSC / PAL 4.08 x 3.10 mm
Pixels: 728 (H) * 492 (V)
Horizontal resolutions: 520 TV lines
White balance: Auto
Minimum Illumination: 0.1 – 0.5Lux / F = 1.2
Video output: RCA connector, 1.0 V p-p, 75ohm
Power supply: DC12V
Operating temperature: -30 °C to + 85 °C, RH 95%
Video cable: 6 m
Power cable: 1.2 m
Compatible with cars:
VW Jetta 2005-2010
VW Touran 2003-2010
VW Sagitar 2005-2010
VW Golf Plus 2005-2007
VW Caddy 2003-present
VW Passat B6 2006-2010
VW Passat B5 1996-2005
VW T5 Transporter 2003-2014
Skoda Superb 2002-2008
IMPORTANT:
The car models specified are for reference only.

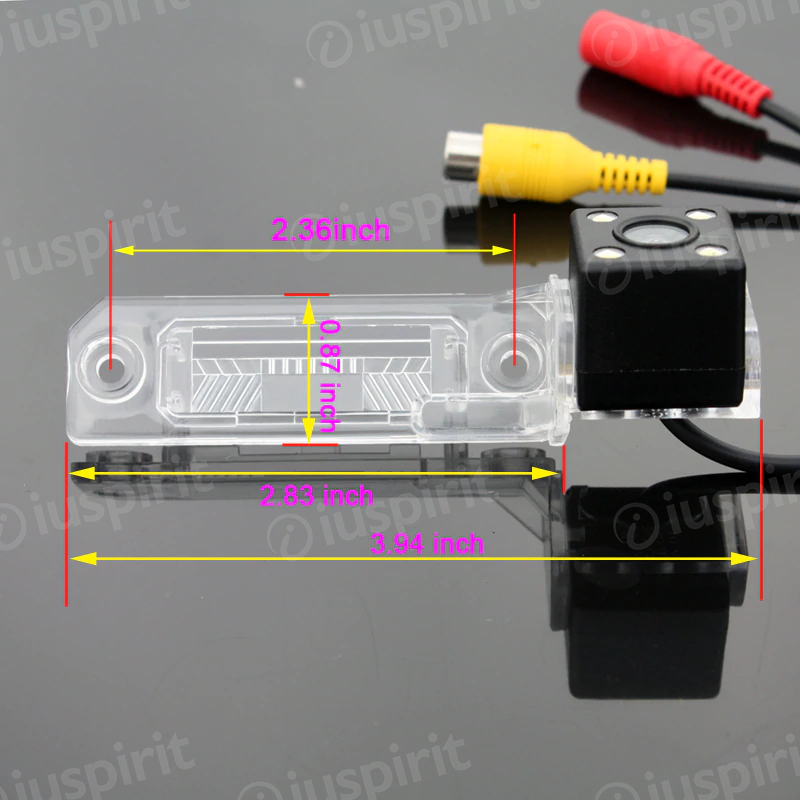

Please ensure before purchase that our product has the same measurements as the number plate light of the car you wish to mount it on.
The product is not compatible with standard car radios.
IMPORTANT:
If after mounting the video is disturbed (with stripes) or only works with the car switched off, the problem is that the rear view camera does not always receive 12V. In this case, an electrical stabiliser (relay) must be fitted to solve the problem.
The relay can be purchased from the link in the picture below:
Example of images where the rear view camera is not correctly powered:
Example of image before and after relay installation:
