170 degree diagonal macro viewing angle lens with mirror image
Dust and water resistant, IP68
High-resolution colour COMS/CCD image sensor
Distance guideline projection
Night vision
Very easy mounting
Product Specifications
Lens angle: 170 degrees diagonal
Sensing area: NTSC / PAL 4.08 x 3.10 mm
Pixels: 728 (H) * 492 (V)
Horizontal resolutions: 520 TV lines
White balance: Auto
Minimum Illumination: 0.1 – 0.5Lux / F = 1.2
Video output: RCA connector, 1.0 V p-p, 75ohm
Power supply: DC12V
Operating temperature: -30 °C to + 85 °C, RH 95%
Video cable: 6 m
Power cable: 1.2 m
Compatible with cars:
VW New Beetle: 2006-2010
VW Passat B6/4D: 2005-2010
VW Phaeton: 2002-2010
VW Scirocco: 2009-2010
VW Polo (2C): 2000-2009
VW Golf 4: 1998-2003
VW Golf 5: 2004-2008
VW Golf 6: 2009-2012
VW Golf/Variant/4 Motion: 2004-2011
VW New Beetle: 2006-2010
Seat Leon/Leon4: 2006-2011
Seat Altea: 2007-2011
Skoda Superb: 2004-2009
IMPORTANT:
The car models specified are for reference only.

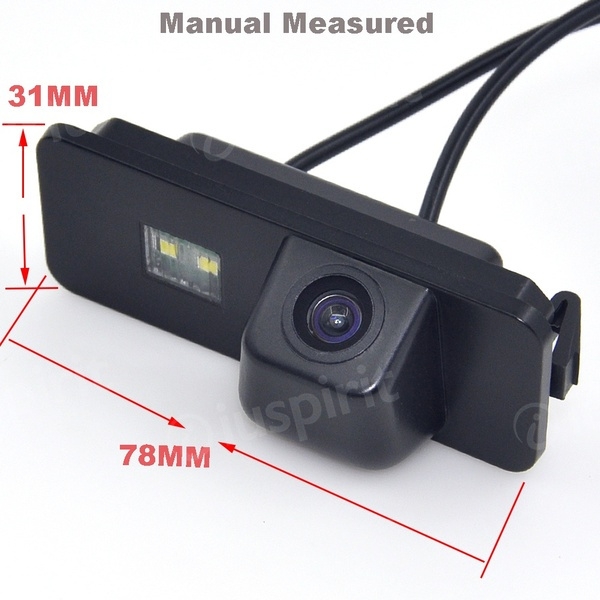

Before purchase, please ensure that our product has the same measurements as the number plate light of the car you wish to mount it on.
The product is not compatible with standard car radios.
IMPORTANT:
If after mounting the video is disturbed (with stripes) or only works with the car switched off, the problem is that the rear view camera does not always receive 12V. In this case, an electrical stabiliser (relay) must be fitted to solve the problem.
The relay can be purchased from the link in the picture below:
Example of images where the rear view camera is not correctly powered:
Example of image before and after relay installation:
