38,00 €
VAT included
Availability: 6 in stock
Lista dei desideri
Shipping costs: 6,00€
30 Days to return the product
100% Secure Payments
Share on
170 degree diagonal macro viewing angle lens with mirror image
Dust and water resistant, IP68
High-resolution colour COMS/CCD image sensor
Distance guideline projection
Night vision
Very easy mounting
Product Specifications
Lens angle: 170 degrees diagonal
Sensing area: NTSC / PAL 4.08 x 3.10 mm
Pixels: 728 (H) * 492 (V)
Horizontal Resolutions: 520 TV lines
White balance: Auto
Minimum Illumination: 0.1 – 0.5Lux / F = 1.2
Video output: RCA connector, 1.0 V p-p, 75ohm
Power supply: DC12V
Operating temperature: -30 °C to + 85 °C, RH 95%
Video cable: 6 m
Power cable: 1.2 m

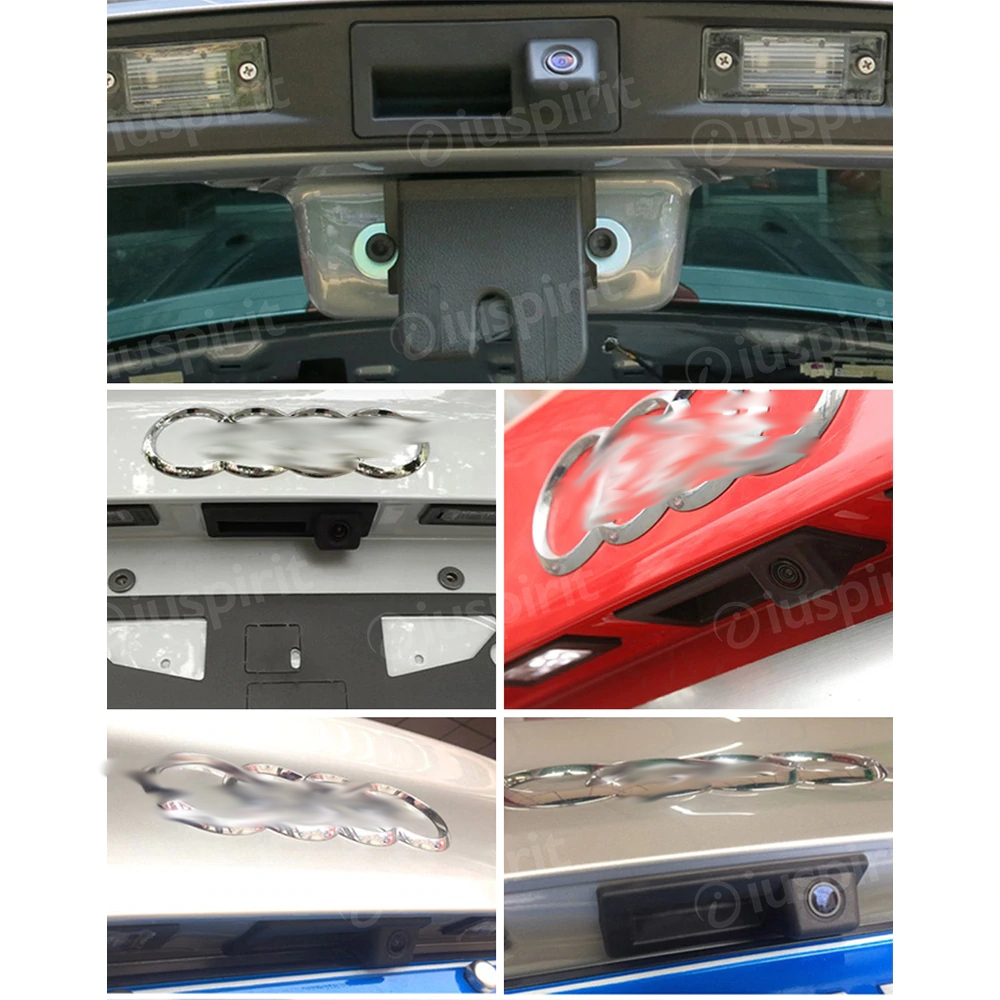

Compatible with cars:
Audi A4 2009-2015
Audi A6 2010-2015
Audi Q5 2009-2015
Audi S5 2009-2015
Audi Q3 2011-2016
Audi A3 2013-2016
VW Touareg 2010-2013
VW Tiguan 2010-2013
VW Jetta 2011-2013
VW Passat 2011-2013
IMPORTANT:
The vehicle models specified are for reference only.
Before purchase, please ensure that our product has the same licence plate light measurements as the car you wish to mount it on.
The product is not compatible with standard car radios.
IMPORTANT:
If after mounting the video is disturbed (with stripes) or only works with the car switched off, the problem is that the rear view camera does not always receive 12V. In this case, an electrical stabiliser (relay) must be fitted to solve the problem.
The relay can be purchased from the link in the picture below:
Example of images where the rear view camera is not correctly powered:
Example of image before and after relay installation:
